USES

Walking Path, Foot Bridge,
Elastic surface in school facilities,
Running Road, Cycling Road

FEATURES

Excellent Color Retention and Durability

Color chip has thick covering polyurethane film on average of around 50～100μｍ around the black rubber chip surface. Excellent adhesion to polyurethane binder of colored chips makes　high performance in strength. So it has excellent color retention and durability.

Measuring example of physical property

	CRC	CRF
Tensile strength(MPa)	1.2	1.0
Elongation(%)	120	120

Excellent Safety in Wet Condition

CRC has Many protuberances on the surface of the color chip aggregate improve the slippery characteristic remarkably on rainy days.

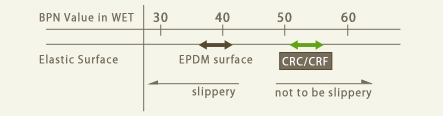

Measuring example of BPN value

CRC	52
CRF	55

（ASTM E 303､ PORTABLE SKID RESISTANCE TESTER）

Friendly to human body, not to contain mineral oil

Conventional EPDM color chip layer contains many quantity of mineral oil that have possibility to occur head ache and other troubles in hot weather. This colored chips contain such kind of oil.

UTILIZATION OF RECYCLED MATERIAL

Utilization of recycled　material, mainly waste truck and bus tire.

Cross section pictures of CC, CF chip

CC-410 brick red

Granule shape colored chip,
Covering state is an average or relatively good.

　 　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

Interval between two black sticks is 1mm.
Width of one stick is 0.18 mm.(180μm）

CF-410 brick red

Fiber shape colored chip
Covering state is an average.

　　　　　　　　　　　　　　　

Width of one stick is 0.18mm.(180μm）

Example of competing product

Many manufacturers produce these kind of thin film colored chip not to be durable for walking or running on it.
